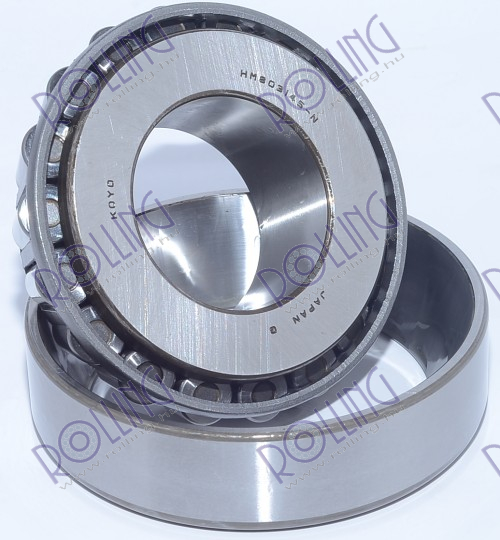

HM 803145/10 KOYO

Net price:

37.106 €/pcs

Main warehouse:
On stock
22 pcs

External stock:
On stock
4 pcs

Next delivery:

2026-06-20 - 20 pcs

Product number:

HM 803145/10

Brand:

KOYO

Product name:

bearing

Structure:

tapered roller bearing

Sizes:

41.275X88.9X29.37/23.02

Replacements:
0009247301 170252R91 454463 7450296 803145/10 hm803145-hm803110 HM 803145/110

Inquiry Subscribe
R: 0,8

Product details from catalogue

Drawings:
d 41.275 mm
D 88.900 mm
T 30.162 mm
B 29.370 mm
C 23.020 mm
r(min.) 0.8 mm
r1(min.) 3.2 mm
Basic load ratings : Cr 124 kN
Basic load ratings : C0r 125 kN
Fatigue load limit : Cu 18.5 kN
Limiting speeds(Grease lub.) 4600 min-1
Limiting speeds(Oil lub.) 6100 min-1
Load center spread : a 26.1 mm
Constant :e 0.55
Axial load factors : Y1 1.10
Axial load factors : Y0 0.60
da 54.0 mm
db 53.0 mm
Da 74.0 mm
Db 85.0 mm
ra(max.) 0.8 mm
rb(max.) 3.2 mm
(Refer.)Mass 0.895 kg
