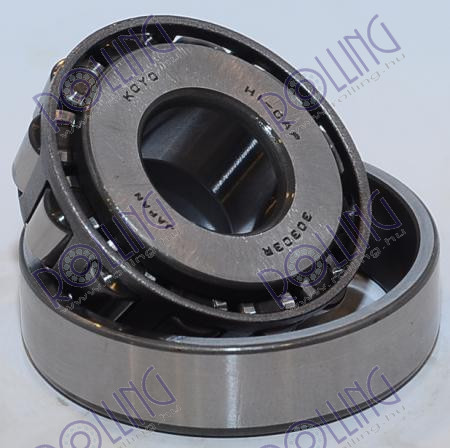

EN30303 R KOYO
Net price:
Main warehouse:
External stock:
9.803 €/db
Main warehouse:
On stock
31 db
External stock:
On stock
9 db
Next delivery:
2025-03-06 - 40 db
Product number:
30303 R
Brand:
Product name:
bearing
Sizes:
17X47X15.25
Catalog:
Catalog #1: http://www.rolling.hu/pdf/KOYO/30303R.pdf
Replacements:
30303*KOYOInquiry Subscribe
Product details from catalogue
Drawings:
| d | 17 mm |
| D | 47 mm |
| T | 15.25 mm |
| B | 14 mm |
| C | 12 mm |
| r(min.) | 1 mm |
| r1(min.) | 1 mm |
| Basic load ratings : Cr | 34.2 kN |
| Basic load ratings : C0r | 24.5 kN |
| Fatigue load limit : Cu | 3.45 kN |
| Limiting speeds(Grease lub.) | 9200 min-1 |
| Limiting speeds(Oil lub.) | 12000 min-1 |
| Load center spread : a | 10.5 mm |
| Constant e | 0.28 |
| Axial load factors : Y1 | 2.11 |
| Axial load factors : Y0 | 1.16 |
| da(min.) | 22.5 mm |
| db(max.) | 25 mm |
| Da(max.) | 41.5 mm |
| da(min.) | 40 mm |
| db(min.) | 42 mm |
| Sa(min.) | 2 mm |
| Sb(min.) | 3 mm |
| ra(max.) | 1 mm |
| rb(max.) | 1 mm |
| (Refer.)Mass | 0.127 kg |
